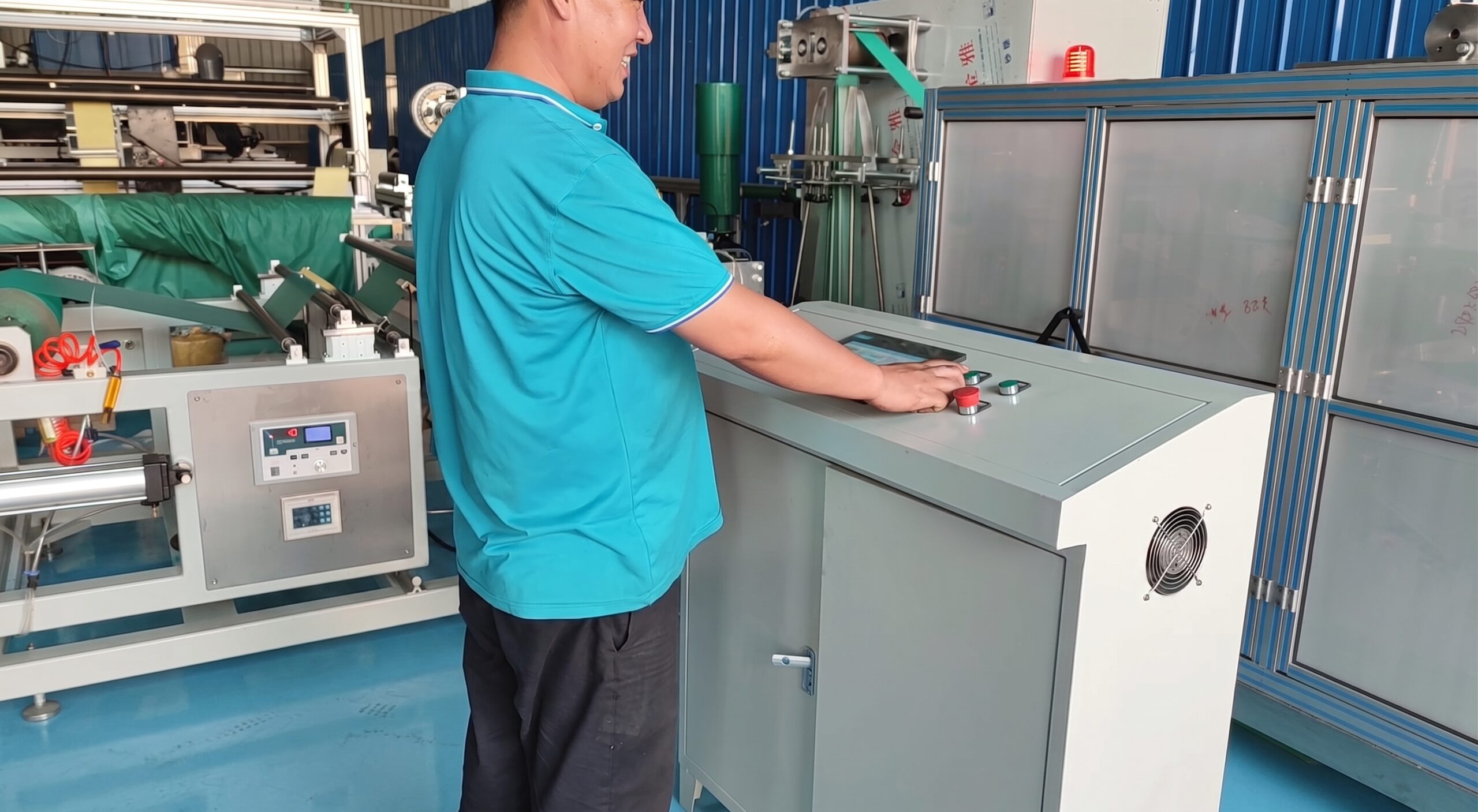

A hole drape folding machine is easy to quote wrong when the wrapper is sized to the open sheet. On a YWJ-WS-CZ line, discharge is a folded pack. Plant managers comparing a hole towel folding machine—or a surgical drape making machine—need that pack size before buying a pillow packer.
Orders are modular: hole cutting, double-sided tape, glue scraping, inkjet coding, printing, or folding only. Web width and fold count are customized. Whatever you fit, the wrapper still follows the folded pack, not the open web.
On a common CZ1600 setup, folded pack size is about 15–28 × 25–35 cm. Put your pack size on the wrapper RFQ. Use hole-station speed only when the hole module is on—not the no-hole pcs/min line. Drive and die choices belong in the medical bed sheet folding machine buyer guide.

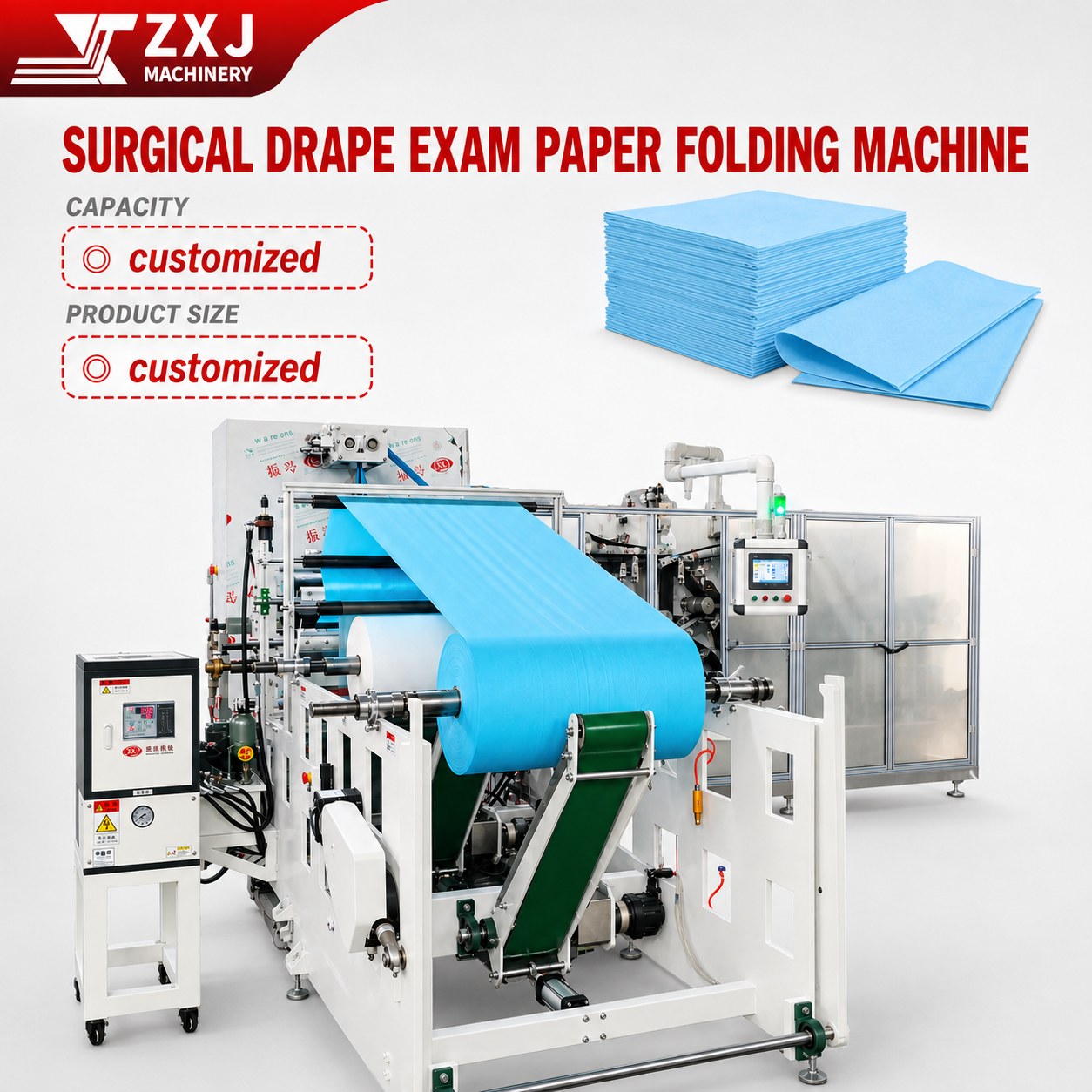

YWJ-WS-CZ1600 example specs (inquiry baseline)
Figures below are a common CZ1600 example. Width, cut length, folded size, and fold count are set per order. Modules not on your quotation are simply not fitted.

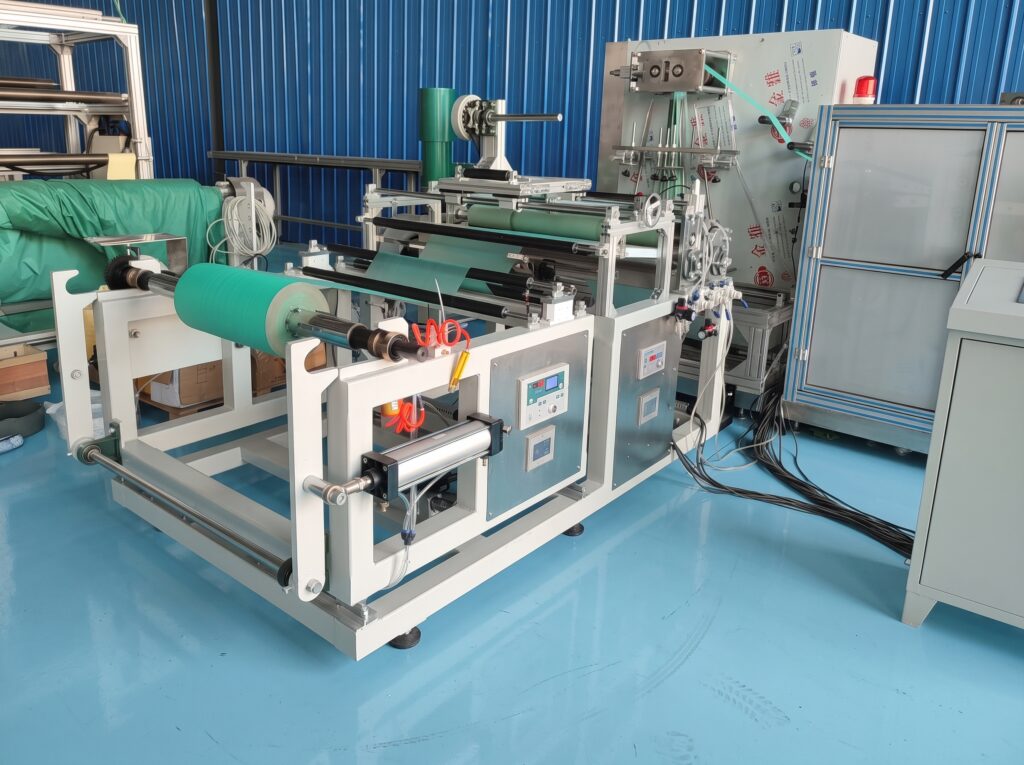

| Item | CZ1600 example |
| Base line | Unwind → fold → cut → count → discharge |
| Products | Bed sheet, middle sheet, hole towel, covering drape (per modules) |
| Web width | Custom (example 40–160 cm) |
| Max open size | Example 160 × 250 cm |
| Folded pack | Example 15–28 × 25–35 cm |
| Cut length | Example 60–250 cm, error ≤ 1 cm |
| Width fold | W-fold or fan-fold (as ordered) |
| Length fold | Example three half-folds (count customizable) |
| Speed, no hole | Example 60 pcs/min (≤0.9 m) / 70 pcs/min (≥1.5 m) |
| Speed, with hole | Example 30–60 turns/min |
| Core / parent roll | 3 inch (75 mm); example ≤120 cm diameter |
| Power | 380 V, 50 Hz, 3-phase 4-wire |
| Motors (example) | Main 7.5 kW; servo 7.5 kW; fan 3 kW if waste takeaway fitted |
| Footprint / weight (example) | About 6 × 4.5 × 2 m, 4.5 t |
Optional modules
| Module | When you need it |
| Hole cutting | Fenestrated / hole towel drapes |
| Double-sided tape | Products that need tape |
| Glue scraping | Adhesive without tape rolls |
| Inkjet coding | Batch / date coding |
| Printing | Inline print / branding |
| Folding only | Plain sheets—no hole, tape, glue, code, or print |
Build the line from modules. Do not treat “plain sheet machine” vs “hole towel machine” as two fixed SKUs.
Folded pack size vs open sheet size
| Dimension | Open sheet | Folded pack (wrapper) |
| Width | Custom web (example 40–160 cm) | After width fold (example 15–28 cm) |
| Length | Custom cut (example 60–250 cm) | After length folds (example 25–35 cm) |
| Used by | Unwind + optional modules + cut | Pillow packer / bagger / pouch |
Quote the wrapper on the folded pack for that order. Fold count follows your quotation—not another model’s sheet.
If you order the hole module: punch before the W-fold
With hole cutting fitted, cut the aperture on the open web, remove waste, flatten, then width-fold. Punching after a multi-layer fan-fold pierces every ply and drifts with fold tightness. Tape, glue, coding, and print—when ordered—sit on the open path per the drawing; they do not replace the pack-size check.
Packaging RFQ checklist
| Ask the packer | Write |
| Folded pack W × L | Your quote (example 15–28 × 25–35 cm) |
| Web width / cut length / fold count | As ordered |
| Modules fitted | Hole / tape / glue / coding / print—list what you bought |
| Discharge | Counting conveyor to packer |
Leave aisle for the parent roll. Size the packer to the folded pack, not open-web width. Do not sum motor kW into one running load unless you measured that configuration.
Hole drape folding machine FAQ
Can the wrapper be quoted on open-web width?
No. Discharge is the folded pack. Collar and jaws follow pack size on your quotation.
Is fold count fixed at three?
No. Fold count is customized. The CZ1600 example often uses three half-folds in length—state what you ordered.
Does a hole module change folded pack size?
Not by itself. Pack size follows the fold recipe. The hole module changes cycle time and needs waste takeaway before the width fold.
Can one line run sheets and hole towels?
Yes, if ordered modules allow it. Folding-only jobs skip hole/tape/glue/code/print. The packer still matches each product’s folded pack. See also the disposable bath towel line.
What do you need to size the line and wrapper?
Unfolded size, web width, fold count, modules (hole / double-sided tape / glue scraping / inkjet coding / printing), hole drawing if any, and packer or target pack size.
