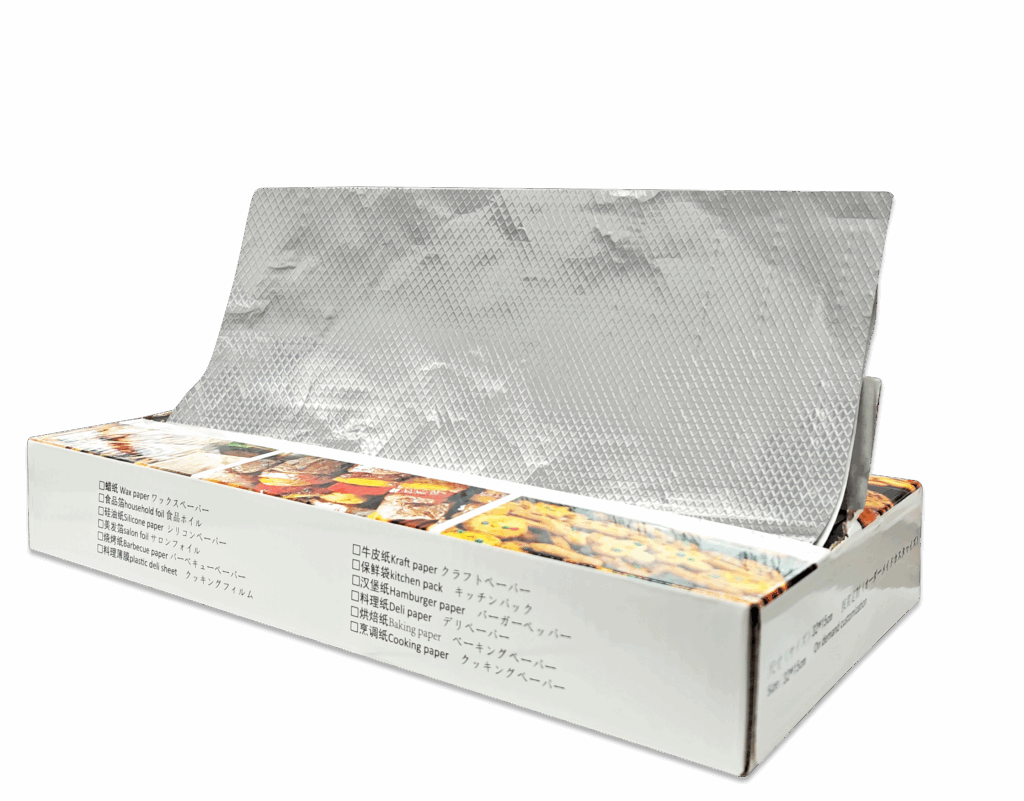

Pop-up aluminum foil sheets are widely used in food service, household packaging, catering, and retail industries. To achieve consistent folding accuracy and good extraction performance, manufacturers use pop-up aluminum foil folding machines. These machines are automated systems. They cut, emboss, fold, and stack foil sheets into a continuous pull-out format.
This article gives a clear explanation of what the machine does. It also explains how it works and why its design is important for sheet quality and production efficiency.

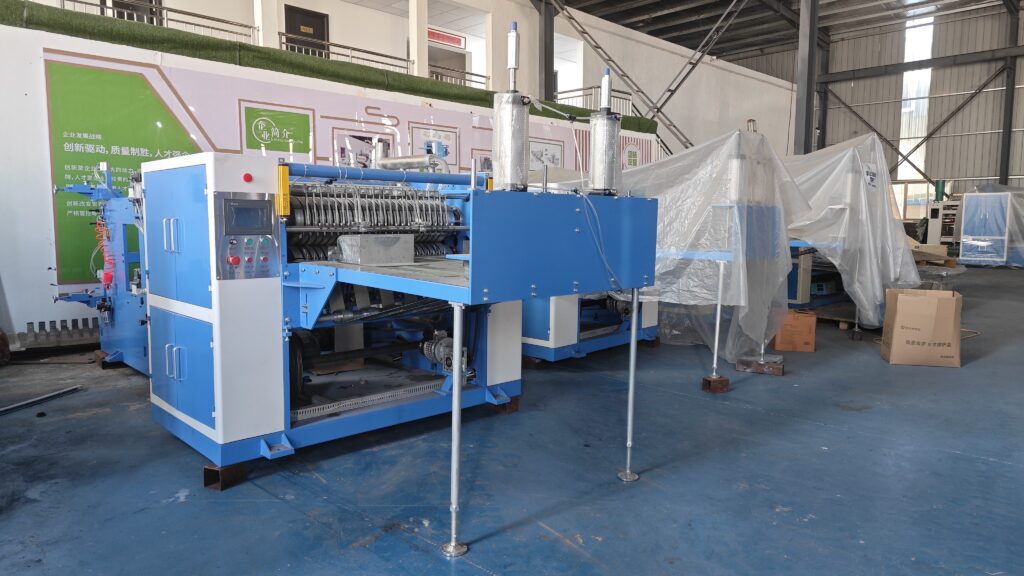

What Is a Pop-up Aluminum Foil Folding Machine?
A pop-up aluminum foil folding machine is a fully automated converting system that processes large foil rolls into pre-cut, embossed, V-folded, cross-folded sheets that allow continuous extraction—one sheet pulls out the next.
The machine completes the entire production sequence, including:
- Raw material unwinding with stable tension control
- Embossing
- Slitting
- cutting
- Vacuum-assisted folding
- Automatic counting
- Finished stack output
It is commonly used by foil converting factories supplying:
- Retail kitchen foil sheets
- Food service & catering pop-up sheets
- Horeca disposables
- Private label brands
How the Machine Works — Step-by-Step Workflow
1. Raw Material Unwinding & Tension Control
The foil roll is mounted on an air-expansion shaft.
A magnetic powder brake maintains stable tension during unwinding, preventing wrinkles, stretching, or inconsistent sheet lengths.
2. Embossing Using Steel and Rubber Rollers
The machine applies a diamond-pattern embossing through a pair of rollers:
- Steel roller
- Polyurethane roller
Embossing improves sheet strength, grip, and stack separation.
The embossing frame is positioned outside the machine for easier roller replacement.
3. Slitting & Serrated Cutting
Depending on product requirements, the machine supports:
- 228 mm（9 inch） or 305 mm（12 inch） slitting
- 2–4 lanes depending on the model
- Serrated cutting knives for clean edges
Cutting accuracy is maintained at ±2 mm.
4. Vacuum Adsorption Folding (Roots Blower System)
A Roots vacuum system creates controlled suction, enabling:
- V-fold
- Cross-fold
- Continuous pull-out alignment
This ensures the top sheet consistently pulls out the next sheet.
5. Automatic Counting by Dot-Pressing Mechanism
Your equipment uses:
- Improved counting structure
- ±2 sheets accuracy per 500-sheet batch
- After the folded sheets are neatly aligned and conveyed forward, a dedicated mechanism applies a small pressure mark (dot) on the top of the stack.
- This mechanical “dot marking” acts as the sheet counter—each dot corresponds to one completed batch.
- The system provides stable and reliable counting performance, ensuring consistency for downstream packaging.
6. Finished Stack Output
Finished stacks are output automatically and ready for packaging.
Typical production speeds:
- Up to 1000 sheets/min (AIF-680 model)
- Up to 1500–2000 sheets/min (AIF-980 model)
Suitable for medium–large scale converting operations.
Key Technical Specifications (Model 680 vs. 980)
Model | YHZJ -AIF 680 The roller surface width is 680mm The maximum pass width is 610mm | YHZJ -AIF 980 The roller surface width is 980mm The maximum pass width is 915mm |
Shearing length | 273 mmCutting-off length of the product is 273mm, ±2mm; | |
After folding length | 273mm product after folding length is 137mm | |
Shape of the finished product | V-fold cross fold, continuous extraction type 273 mmProduct advise edge is 3-10mm adjustable | |
Cut off the method | Serrated cut | |
Embossing device | The equipment is equipped with one pairs of steel roller and rubber roller,diamond-type lattice（can change） | |
Suitable raw material | 0.011-0.020mm single-layer aluminum foil with a thickness tolerance of ±5% | |
Specification of raw paper core | 76mm( 3 inches) | 150mm( 6 inches) |
Raw material size | ≤Φ800mm×Max width 610mm | ≤Φ800mm×Max width 915mm |
Process capability | Single line 400-500sheets/min*2 lines =1000sheets/min | Single line 400-500sheets/min*3/4 lines =1500-2000sheets/min |
Cutting width | 228mm/305mm* 2lines Slitting with connecting points | 228mm*4lines/305mm*3lines, Slitting with connecting points |
Power required | Main motor 380V 50Hz 4KW Tension motor 380V 50Hz 1KW vacuum blower 380V 50Hz 15KW | Main motor 380V 50Hz 4KW Tension motor 380V 50Hz 1KW vacuum blower 380V 50Hz 18.5KW |
weight | 4500kg | 5500kg |
Machine size | 4050*1850*1750mm | 4050*2150*1750mm |
Where Pop-up Foil Sheets Are Used
Pop-up aluminum foil sheets are widely used in:
- Commercial kitchens
- Catering service
- Retail household packaging
- Bakery & roasting factories
- Food processing plants
- Supermarkets and private-label products
They offer:
- Easy one-hand extraction
- Uniform size
- Improved hygiene
- Faster workflow efficiency
Benefits of Using an Automated Pop-up Foil Folding Machine
Consistent Folding Quality
Vacuum-assisted folding ensures stable alignment and smooth pull-out performance.
High Production Efficiency
Speeds up to 2000 sheets/min support large-scale manufacturing.
Accurate Counting with Reduced Waste
±2 accuracy lowers rework and improves packaging efficiency.
Flexible Product Specifications
Supports multiple folding widths, embossing patterns, and lane configurations.
Lower Labor Cost
Automation ensures consistent quality with reduced operator involvement.
Frequently Asked Questions（FAQ）
- What types of aluminum foil can the machine process?
Single-layer foil with 0.011–0.020 mm thickness and ±5% tolerance.
- Can the machine produce different sheet sizes?
Yes. Sheet width depends on slitting configuration (228 mm / 305 mm). Length is controlled by the cutting system.
- What is the typical production speed?
1000–2000 sheets per minute depending on model and lane count.
- How does the machine ensure counting accuracy?
A Dot pressing counting system with ±2 sheet precision.
- What folding style does the machine use?
V-fold and cross-fold with continuous pull-out function.
- How easy is it to change embossing rollers?
The embossing frame is external, making roller replacement fast and convenient.
- What power supply is required?
380V / 50Hz industrial three-phase.
Conclusion
A pop-up aluminum foil folding machine is important for factories. Manufacturers use it to create catering-grade and retail foil sheets. This machine combines tension control, embossing, cutting, vacuum folding, and precise counting into one automated process. This ensures stable quality and high productivity.
For manufacturers wanting consistent output and flexible SKUs, the AIF-680 and AIF-980 models provide proven performance and reliable production.
Our unique folding mechanism is renowned for its stability, precision, and durability.
