Aluminum Foil Folding Machine

Automatic Aluminum Foil Folding Machine for Pop-up Foil Sheets and Interfold Foil Production

High-Speed Aluminum Foil Folding Machine for Large-Scale Production

Model	YHZJ -AIF 680The roller surface width is 680mm The maximum pass width is 610mm	YHZJ -AIF 980The roller surface width is 980mm The maximum pass width is 915mm
Shearing length	273 mmCutting-off length of the product is 273mm, ±2mm;	273 mmCutting-off length of the product is 273mm, ±2mm;
After folding length	273 mm product after folding length is 137mm	273 mm product after folding length is 137mm
Shape of the finished product		V-fold cross fold, continuous extraction type273 mmProduct advise edge is 3-10mm adjustable
Cut off the method	Serrated cut		Serrated cut
Embossing device	The equipment is equipped with one pairs of steel roller and rubber roller,diamond-type lattice（can change）
Suitable raw material	0.011-0.020mm single-layer aluminum foil with a thickness tolerance of ±5%
Specification of raw paper core	76 mm( 3 inches)	150 mm( 6 inches)
Raw material size	≤Φ800 mm×Max width 610mm	≤Φ800mm×Max width 915mm
Process capability	Single line 400-500 sheets/min*2 lines =1000 sheets/min	Single line 400-500 sheets/min*3/4 lines =1500-2000 sheets/min
Cutting width	228mm/305 mm* 2linesSlitting with connecting points	228 mm4lines/305 mm3lines, Slitting with connecting points
Power required	Main motor 380V 50Hz 4 KW Tension motor 380V 50Hz 1KW Draught fan 380V 50Hz 15 KW	Main motor 380V 50Hz 4 KW Tension motor 380V 50Hz 1KW Draught fan 380V 50Hz 18.5 KW
weight	4500kg	5500kg
Machine size	405018501750mm	405021501750mm

Get instant quote now

Aluminum foil pop-up folding machine with finished foil sheets

This version of foil sheets folding machine includes safety light curtain, touch screen, automatic tension control, etc.

Entry-Level Foil Sheets Folding Machine for Small and Medium Production

Model	YHZJ -AIF 680The roller surface width is 680mm The maximum pass width is 610mm	YHZJ -AIF 980The roller surface width is 980mm The maximum pass width is 915mm
Shearing length	273 mmCutting-off length of the product is 273mm, ±2mm;	273 mmCutting-off length of the product is 273mm, ±2mm;
After folding length	273 mm product after folding length is 137mm	273 mm product after folding length is 137mm
Shape of the finished product		V-fold cross fold, continuous extraction type273 mmProduct advise edge is 3-10mm adjustable
Cut off the method	Serrated cut		Serrated cut
Embossing device	The equipment is equipped with one pairs of steel roller and rubber roller,diamond-type lattice（can change）
Suitable raw material	0.011-0.020mm single-layer aluminum foil with a thickness tolerance of ±5%
Specification of raw paper core	76 mm( 3 inches)	150 mm( 6 inches)
Raw material size	≤Φ800 mm×Max width 610mm	≤Φ800mm×Max width 915mm
Process capability	Single line 400-500 sheets/min*2 lines =1000 sheets/min	Single line 400-500 sheets/min*3/4 lines =1500-2000 sheets/min
Cutting width	228mm/305 mm* 2linesSlitting with connecting points	228 mm4lines/305 mm3lines, Slitting with connecting points
Power required	Main motor 380V 50Hz 4 KW Tension motor 380V 50Hz 1KW Draught fan 380V 50Hz 15 KW	Main motor 380V 50Hz 4 KW Tension motor 380V 50Hz 1KW Draught fan 380V 50Hz 18.5 KW
weight	4500kg	5500kg
Machine size	405018501750mm	405021501750mm

Get instant quote now

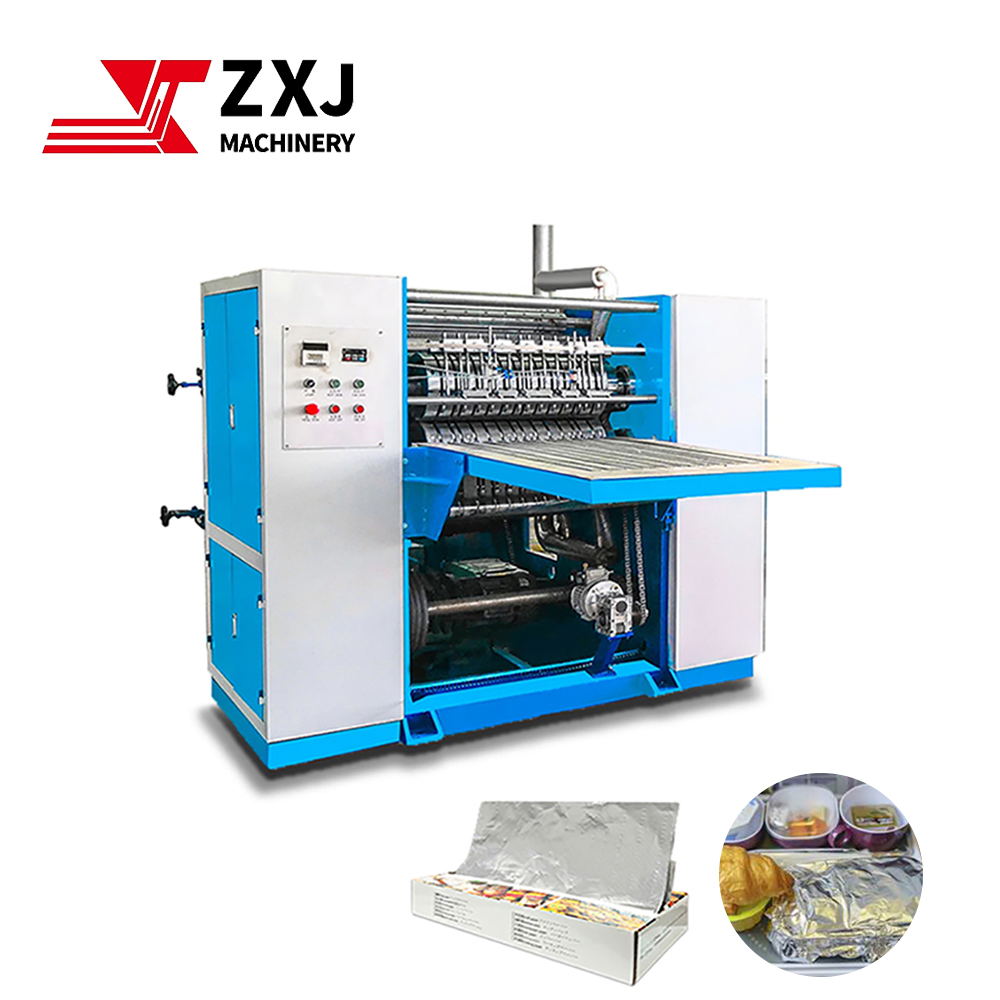

Basic aluminum foil folding machine for pop-up foil sheet production with manual tension control, embossing, cutting and accurate counting.

This version of foil sheets folding machine excludes safety light curtain, touch screen, automatic tension control, etc.

Pop-up Aluminum foil Production Line

Fully Automated Pre-Cut Foil Production Line integrates a foil folding machine, automatic boxing unit, and conveyor system. Achieves end-to-end automation to boost efficiency and reduce labor costs.
