Integrity of lamination and the precision of folding
In the dental consumables manufacturing industry, the quality of a dental bib is determined by two critical factors: the integrity of its lamination and the precision of its folding. For manufacturers using the YWJ-DS-CF series, understanding the technical synergy between the material composite process and the mechanical folding logic is essential for optimizing production efficiency and product quality.
1.The Foundation: High-Precision Lamination Process
Before the folding begins, the machine must transform raw wood pulp paper and PE cast film into a single, high-performance medical barrier.

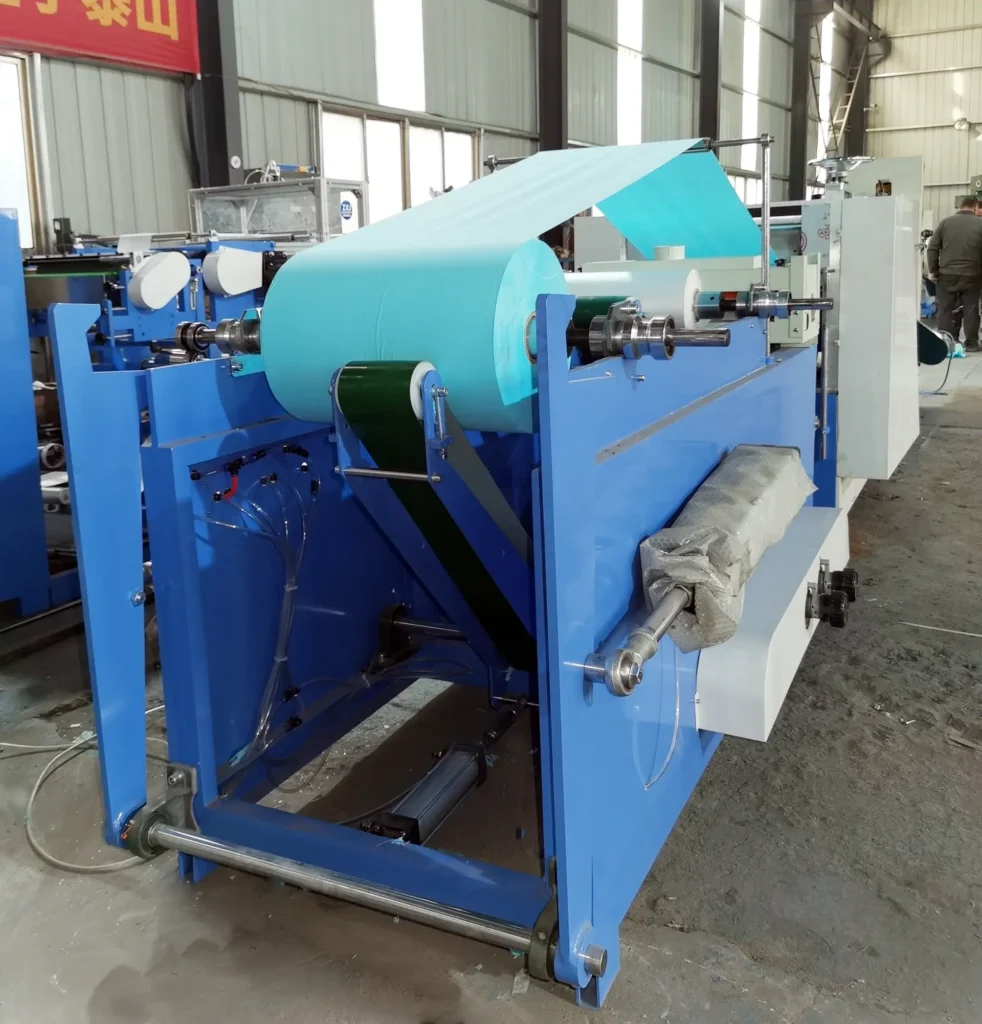

- Synchronous Unwinding: The process starts with two rolls—wood pulp paper (up to 1200mm diameter) and PE film (up to 600mm diameter)—feeding into the system simultaneously.

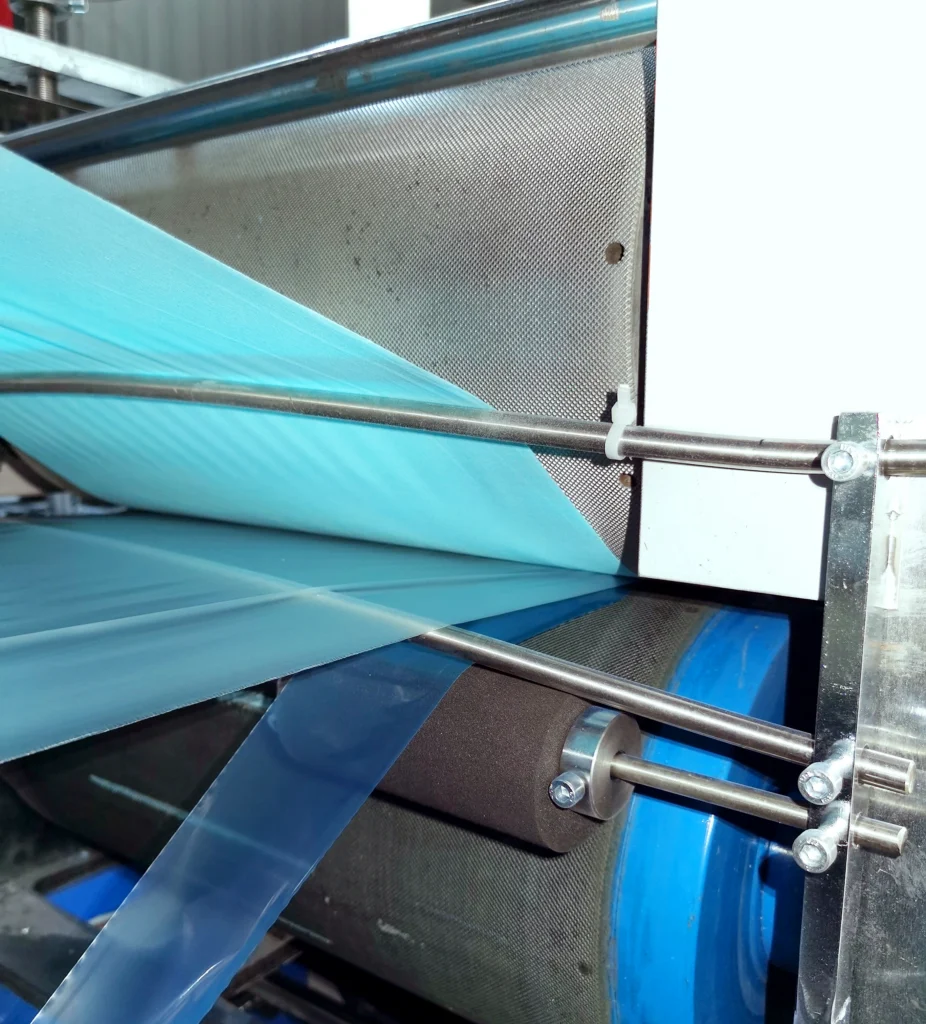

- Steel-to-Wool Embossing: A specialized roller pair (heated steel roller against a wool-felt roller) applies a uniform pattern. This not only binds the layers without glue but also creates the characteristic texture that improves fluid absorption.

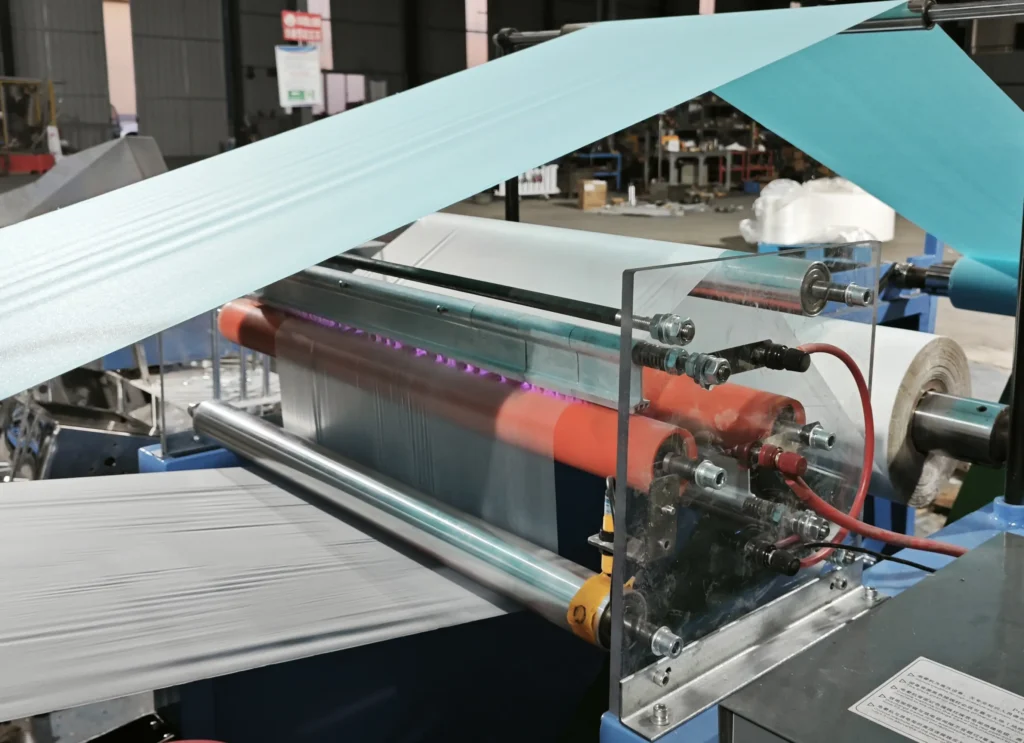

- Corona Treatment: For the YWJ-DS-CFU model, the cast film undergoes corona treatment to enhance surface tension, ensuring a superior bond with the paper layer.
2.Technical Deep-Dive: M-Fold vs. Z-Fold Logic
The YWJ-DS-CF series employs a sophisticated dual-stage folding mechanism to achieve the compact, rectangular shape required for dental clinics.
The M-Folding Process (Width-Direction)
The M-fold, also known as a 6-layer fan-fold in certain configurations, happens across the width of the material web.

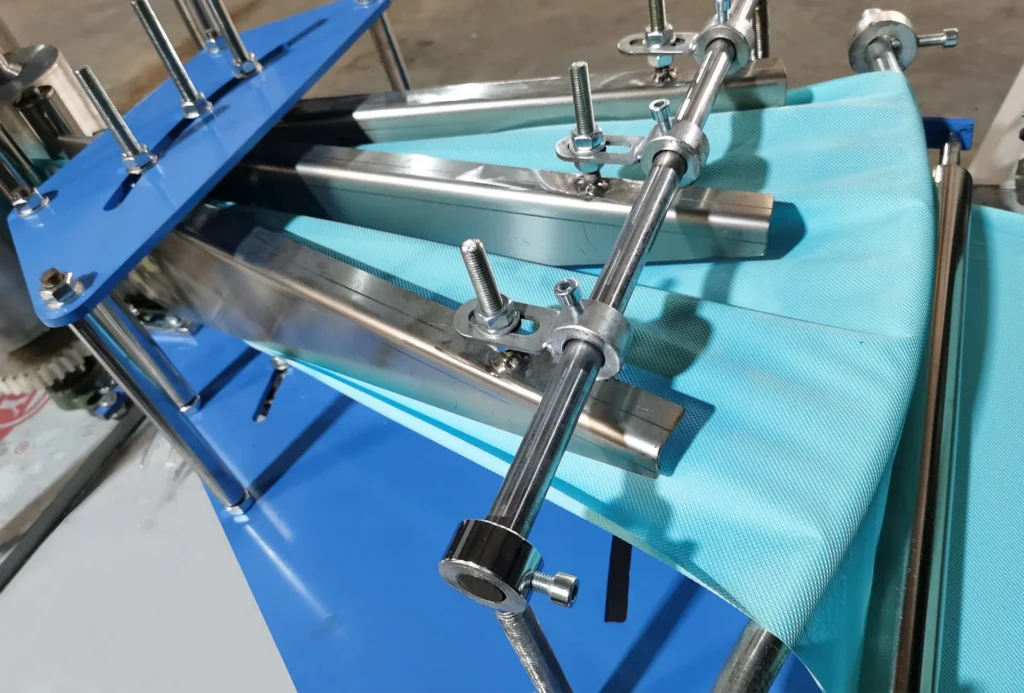

The YWJ-DS-CF uses an all-stainless M-shaped former to guide the continuous composite material into a series of longitudinal folds
Mechanism: The former shapes the web into an ‘M’ profile, reducing the width of the bib while maintaining its unfolded length.
Benefit: This allows the bib to expand easily when opened by the dental assistant, providing full chest coverage for the patient.

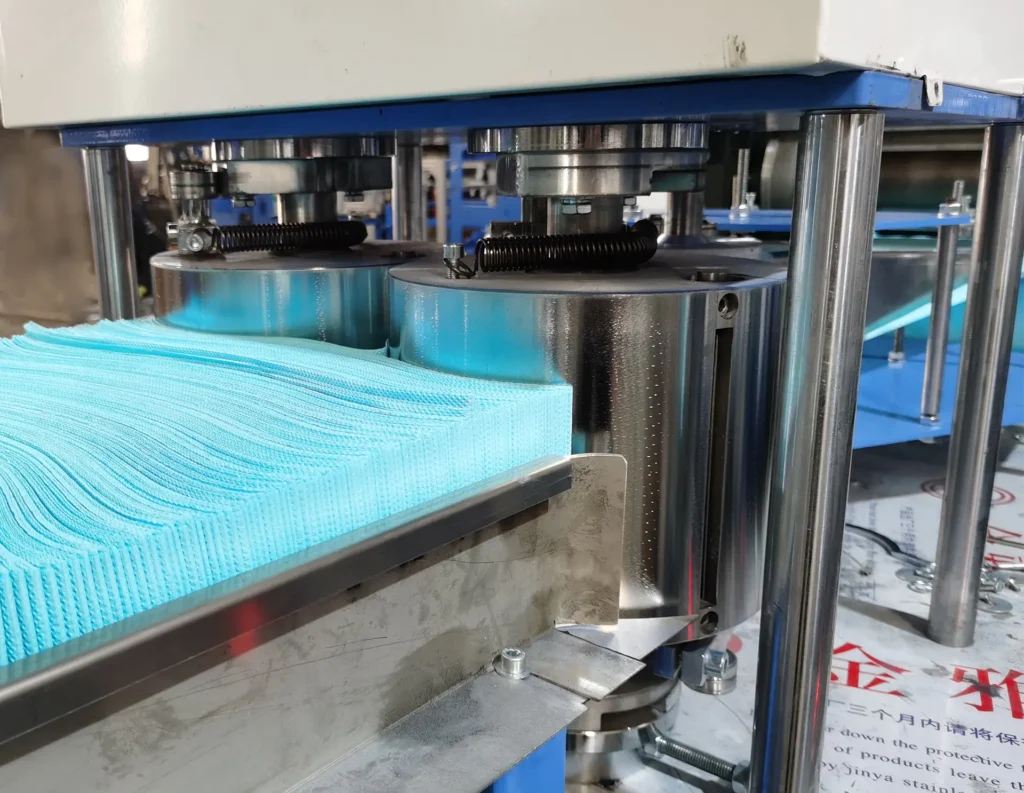

The Z-Folding & Slicing Process (Length-Direction)
Once the material is M-folded, it moves to the traction and cutting section. Here, the machine performs a continuous Z-fold (folding in half or thirds along the length) before slicing the material into individual units.

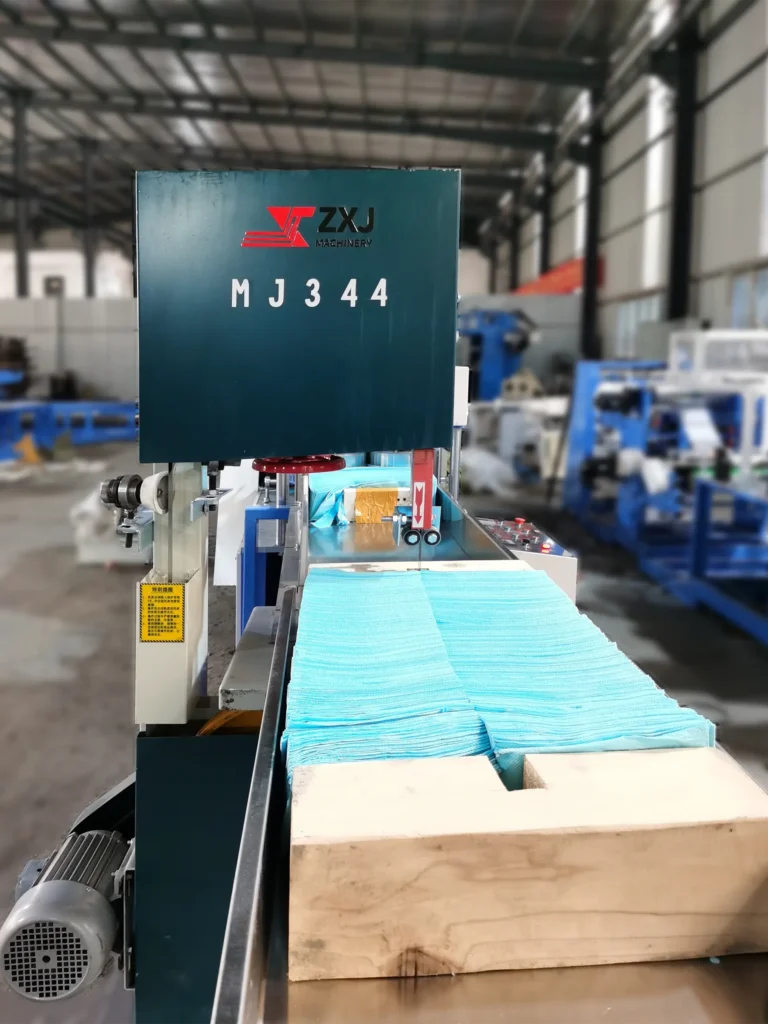

Cutting: For the YWJ-DS-CF, manual one-pass band-saw cutting is used, supported by a wooden pusher for operator safety.

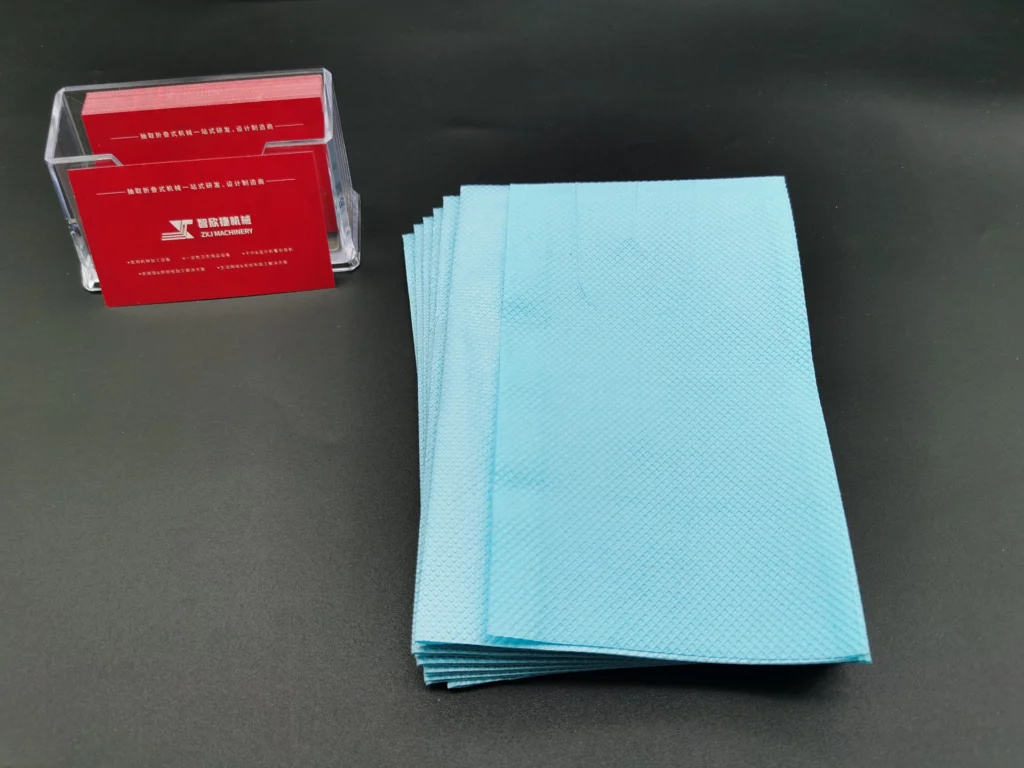

Stacking: The final product is discharged into a U-shaped chute, arranged neatly for easy counting and packaging.
3. Technical Parameters: YWJ-DS-CF Series Comparison
Specification | YWJ-DS-CF | YWJ-DS-CFU |
Function | Composite, Folding, Slicing | Composite, Die-cutting, Forming, Folding |
Folding Method | Horizontal M-fold, Fold in half | Horizontal M-fold, Fold in half |
Production Speed | 200~400 pieces/min | 55~80 m/min |
Equipment Power | 4.5 kw | 7.5 kw |
Dimensions | 8600 x 1600 x 1700 mm | 9600 x 1600 x 1700 mm |
Key Components | Delta Inverters, Corona Treater, Large-bore Cylinder | Delta Inverters, Corona Treater, Large-bore Cylinder |
4.Why Medical Standards Demand Precision
The YWJ-DS-CF series is designed to meet strict medical pad standards.
- Lamination Firmness: The paper-to-film bond must be firm enough that it cannot be rubbed apart by light manual force.
- Anti-Penetration: The embossing must be uniform to ensure the bib meets anti-penetration tests, preventing fluids from reaching the patient’s clothing.
- Safety & Hygiene: All contact parts are made of high-grade materials to prevent contamination during the high-speed production of 150 pieces per minute.
Why Global Buyers Trust ZXJ Machinery’s Solutions

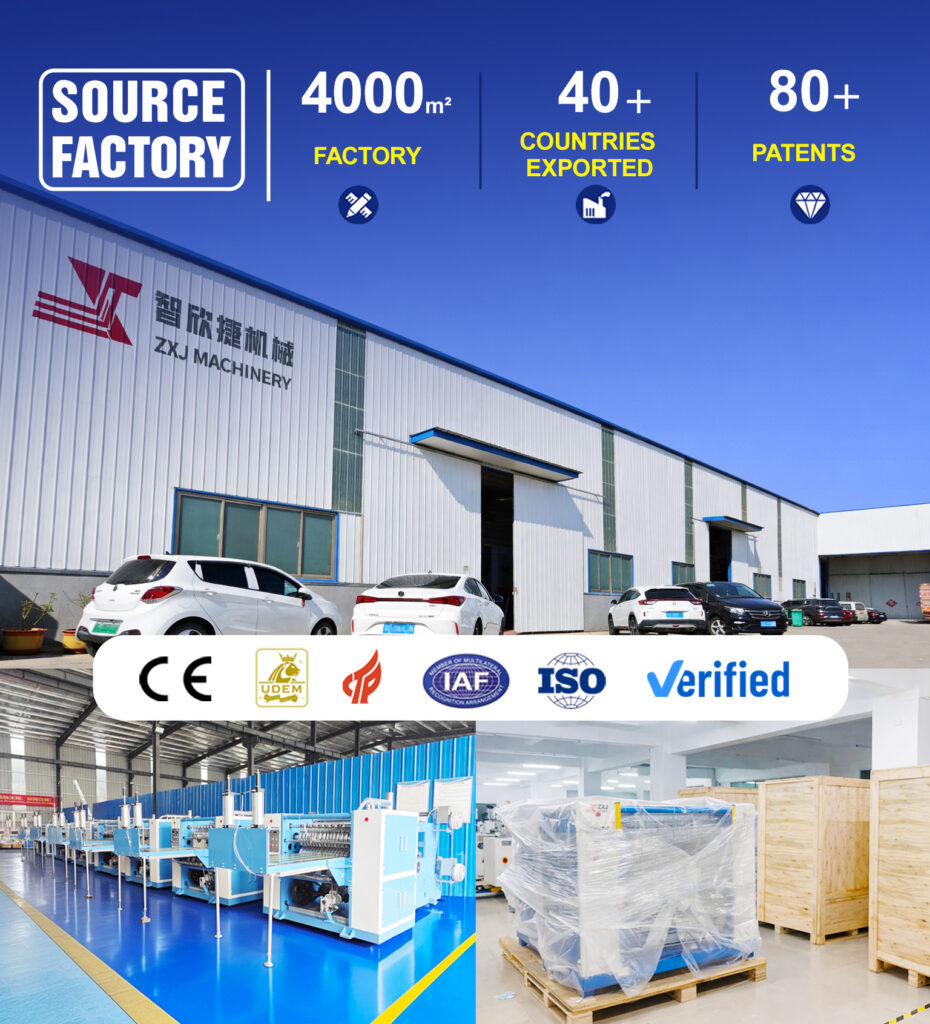

Located in the Taiping Industrial Park, Lianyungang city, China, ZXJ Machinery is a National High-Tech Enterprise with over 30 years of deep industry accumulation. We have always been at the forefront of machinery R&D, design, and manufacturing. We deeply understand the importance of “lean production and reliable quality” to our customers
Conclusion
Choosing a patient bibs(dental bibs) mechanisms is not just a matter of product speed; it is about choosing a machine that can deliver consistent, high-speed, and medically compliant results. With over 30 years of experience, Lianyungang ZXJ Machinery Co., Ltd. provides the YWJ-DS-CF series as a robust solution for global medical consumable suppliers.
FAQ
Q: What raw materials can the YWJ-DS-CF Dental Bib Folding Machine process?
A: It processes single or double-layer wood pulp paper (460mm width) and cold-pressed cast film (≤ 460mm), the standard materials for high-quality medical dental bibs.
Q: Can we adjust the size of the final folded dental bib?

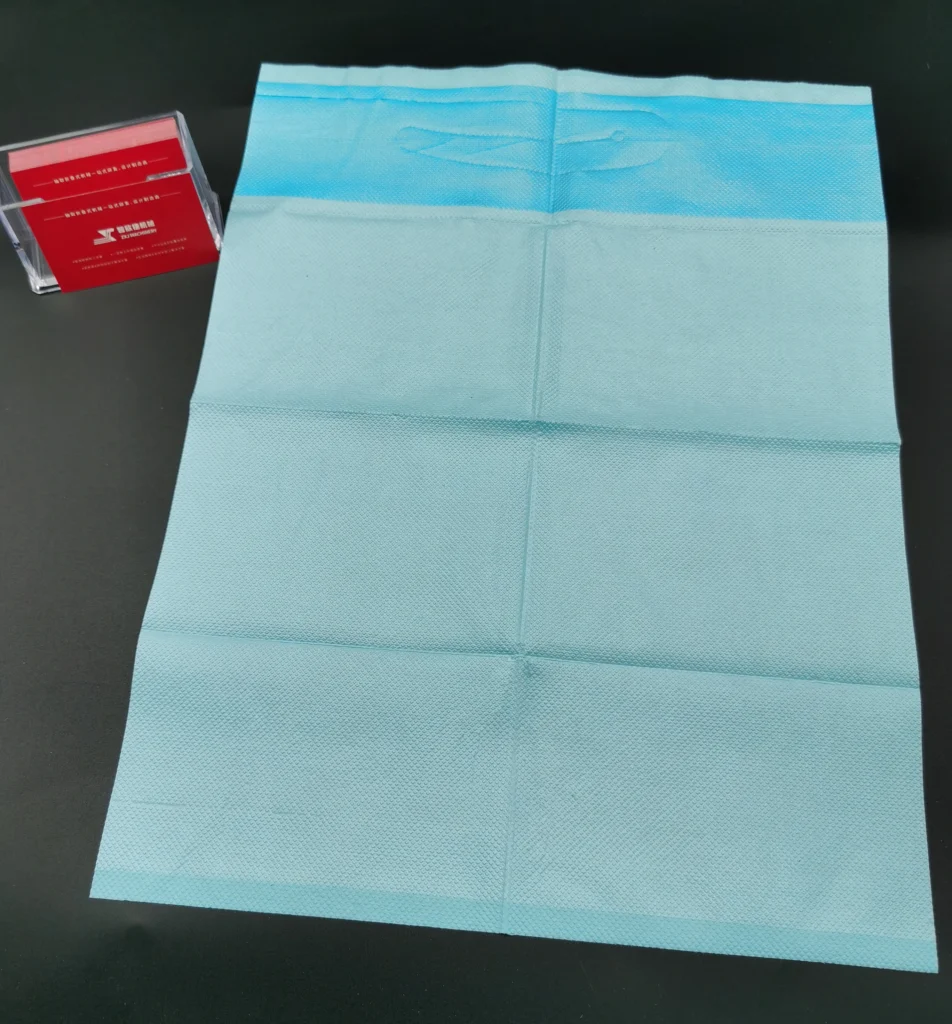

A: Yes. The unfolded length can reach up to 700mm, and the final folded size can be easily adjusted based on your web width and pocket depth settings.
Q: What is the actual production speed of this machine?
A: The machine runs steadily at a high speed of 55 to 80 meters per minute, easily meeting large-volume daily production demands.
Q: What is the difference between the machine with die-cutting and without die-cutting?
A: The die-cutting model cuts specific shapes (like neck curves) for ergonomic bibs. The non-die-cutting model produces standard rectangular bibs.
Q: How do you ensure the paper and film will not delaminate during usage?
A: Our precision embossing system firmly bonds the paper and PE film without glue, ensuring excellent firmness that easily passes strict medical anti-penetration and rub tests.
Q: Is the machine easy to operate and install for overseas buyers?
A: Yes. We provide comprehensive English manuals, layout drawings, and instructional videos, plus online video guidance from our engineers to ensure smooth installation.
Q: Can the electrical voltage be customized for our country’s standard?
A: The standard is 3-phase 380V, 50Hz (7.5kw). However, we can customize the motors and components to match your local factory voltage and frequency (e.g., 220V/480V, 60Hz).
