Integrity of lamination and the precision of folding
In the competitive market of medical consumables, production speed is not just a number—it is the cornerstone of your Return on Investment (ROI). For manufacturers of disposable dental bibs, the YWJ-DS-CFU and YWJ-DS-CF series represent a significant leap in industrial automation, offering speeds that redefine throughput expectations.
1.Quantifying High-Speed Output: 400 Pieces Per Minute
Efficiency begins with raw capacity. The standard YWJ-DS-CF model is engineered to produce 400 pieces per minute.
When operating at full capacity, this translates to thousands of units per hour, allowing suppliers to fulfill large-scale medical contracts with shorter lead times.
For specialized products, the YWJ-DS-CFU (Tie-style) production line maintains a stable linear speed of 55–80 meters per minute.
This ensures that even with the added complexity of tie-hole die-cutting and pocket mouth folding, efficiency remains uncompromised.
2.Technologies That Drive Efficiency
High speed without stability leads to waste. The YWJ-DS-CF series integrates several key technologies to ensure that high-speed production remains consistent and high-quality:
- Delta Frequency Converters: The entire machine utilizes Delta frequency converters to provide precise control over motor speeds, ensuring smooth transitions and reducing mechanical wear.（We can also customize other world-leading inverter brands according to your requirements.）
This image provided are for reference only.
- Synchronized Traction: The unwinding synchronous traction mechanism prevents material slippage or stretching, which is critical when laminating wood pulp paper with thin PE films at high velocities.

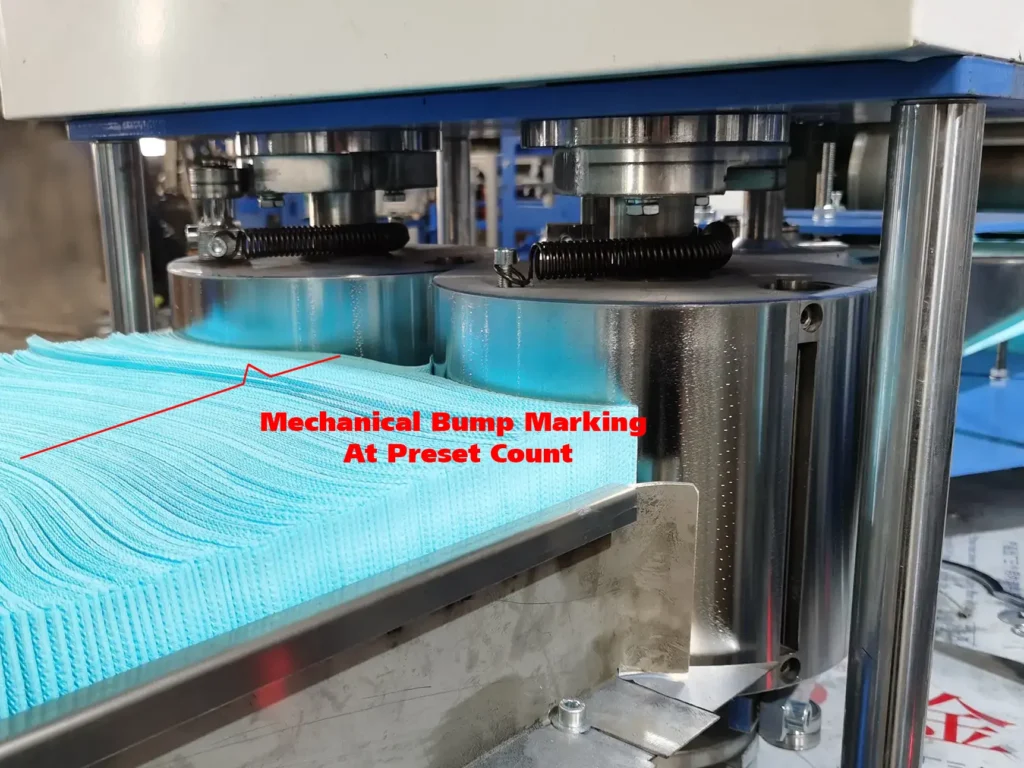

- Automated Counting: An integrated counting system automatically tracks output, reducing manual labor and errors during the packaging stage.
3.Operational Efficiency and Resource Management
Specification | YWJ-DS-CF | YWJ-DS-CFU |
Function | Composite, Folding, Slicing | Composite, Die-cutting, Forming, Folding |
Folding Method | Horizontal M-fold, Fold in half | Horizontal M-fold, Fold in half |
Production Speed | 200~400 pieces/min | 55~80 m/min |
Equipment Power | 4.5 kw | 7.5 kw |
Dimensions | 8600 x 1600 x 1700 mm | 9600 x 1600 x 1700 mm |
Key Components | Delta Inverters, Corona Treater, Large-bore Cylinder | Delta Inverters, Corona Treater, Large-bore Cylinder |
4.Minimizing Downtime: Design for Continuity
A truly efficient machine minimizes the time spent on maintenance and material changes:
- Large Roll Capacity: With raw material diameters up to 1200mm for wood pulp paper and 600mm for PE film, operators spend less time changing rolls and more time producing.
- Streamlined Discharge: The extended all-stainless finished-product conveyor chute (U-shaped chute) ensures that finished bibs are collected neatly and are ready for immediate manual assistance in slicing and packaging.
- Safety First: The included wooden pusher protects the operator during the manual one-pass band-saw cutting process, ensuring that safety protocols do not slow down the production rhythm.
Why Global Buyers Trust ZXJ Machinery’s Solutions
Located in the Taiping Industrial Park, Lianyungang city, China, ZXJ Machinery is a National High-Tech Enterprise with over 30 years of deep industry accumulation. We have always been at the forefront of machinery R&D, design, and manufacturing. We deeply understand the importance of “lean production and reliable quality” to our customers
Conclusion
Investing in the YWJ-DS-CF series means investing in a future of high-volume, reliable, and efficient manufacturing. With over 30 years of experience, Lianyungang ZXJ Machinery provides the tools necessary to scale your business and meet the global demand for high-quality dental consumables.
FAQ
Q: How does the production speed of 150 pieces/min impact product quality?
A: Thanks to the synchronized traction and Delta frequency control, quality remains high even at maximum speed. The embossing remains uniform, ensuring the bibs meet anti-penetration and lamination firmness standards.
Q: Can we adjust the size of the final folded dental bib?
A: Yes. The unfolded length can reach up to 700mm, and the final folded size can be easily adjusted based on your web width and pocket depth settings.
Q: What is the actual production speed of this machine?
A: The machine runs steadily at a high speed of 55 to 80 meters per minute, easily meeting large-volume daily production demands.
Q: What is the difference between the machine with die-cutting and without die-cutting?
A: The die-cutting model cuts specific shapes (like neck curves) for ergonomic bibs. The non-die-cutting model produces standard rectangular bibs.
Q: How do you ensure the paper and film will not delaminate during usage?
A: Our precision embossing system firmly bonds the paper and PE film without glue, ensuring excellent firmness that easily passes strict medical anti-penetration and rub tests.
Q: Is the machine easy to operate and install for overseas buyers?
A: Yes. We provide comprehensive English manuals, layout drawings, and instructional videos, plus online video guidance from our engineers to ensure smooth installation.
Q: Can the electrical voltage be customized for our country’s standard?
A: The standard is 3-phase 380V, 50Hz (7.5kw). However, we can customize the motors and components to match your local factory voltage and frequency (e.g., 220V/480V, 60Hz).
