Pop-up formats are increasingly used for pre-cut deli paper, interfolded burger wrap, and dispenser-style bakery tissue. This pop-up wax paper folding machine (also used as an interfolded wax paper machine / wax paper interfolder) converts roll stock into V-fold cross-fold sheets for one-at-a-time dispensing, helping manufacturers reduce manual cutting and improve packaging consistency.
Key Benefits for Pre-Cut Deli Paper & Pop-Up Food Wrap Lines
Ready for line integration: Suitable as a module in an automatic food packaging line when paired with boxing/cartoning and downstream packing.
One-at-a-time dispensing performance: V-fold cross fold format supports continuous extraction in retail/foodservice boxes.
Fixed-length cutting for uniform packs: Standard 273 mm length (customizable as fixed size) improves sheet consistency for deli and bakery operations.
High-speed paper converting: Multi-column production layout options support scalable output planning.
Lower labor dependence: Designed to reduce labor in deli paper packaging by automating cutting + folding + batching.
Technical Specifications (Model: YHZJ-PF-980)
Item | Specification |
Pop-up wax paper folding machine / interfolded wax paper machine | |
Finished sheet (unfold) | Length: 273 mm (customizable, fixed size); Width: 6”, 8”, 10”, 12”, 15” etc. |
Fold type | V-fold cross fold, continuous extraction type |
Applicable materials | 28–50 GSM silicone oil paper or wax paper |
Paper core | 76 mm (3 in.) |
Max raw roll | ≤ Φ1000 mm, max width 915 mm |
Output capability | Single column 300–400 sheets/min; common layouts: 305 mm 3 columns / 228 mm 4 columns |
Control | 7-inch touch screen, touch control |
Power | Roots blower 22 kW; Main motor 4 kW; Tension motor 2 kW; Feed-out conveyor 400 W |
Machine size | Host: 6800×2150×2350 mm; Roots blower: 2300×800×2600 mm |
Gross weight | 6500 kg |
Typical Products You Can Produce

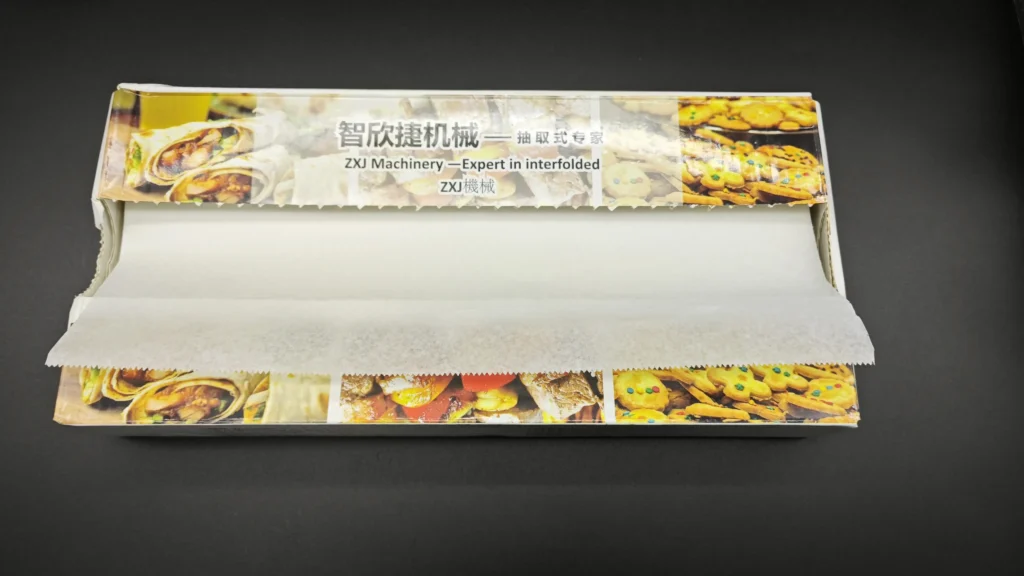

Dispenser box formats supporting one-at-a-time extraction

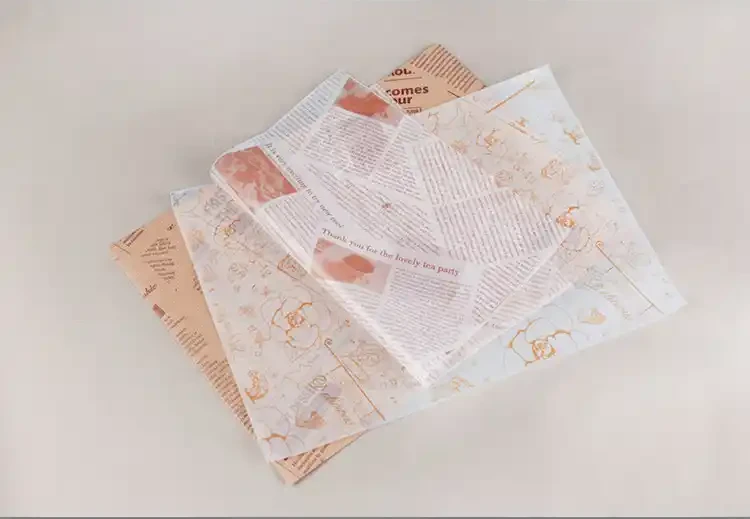

Pre-cut deli paper sheets for sandwich/deli counters
Pop-up bakery tissue style sheets (dispenser-ready)

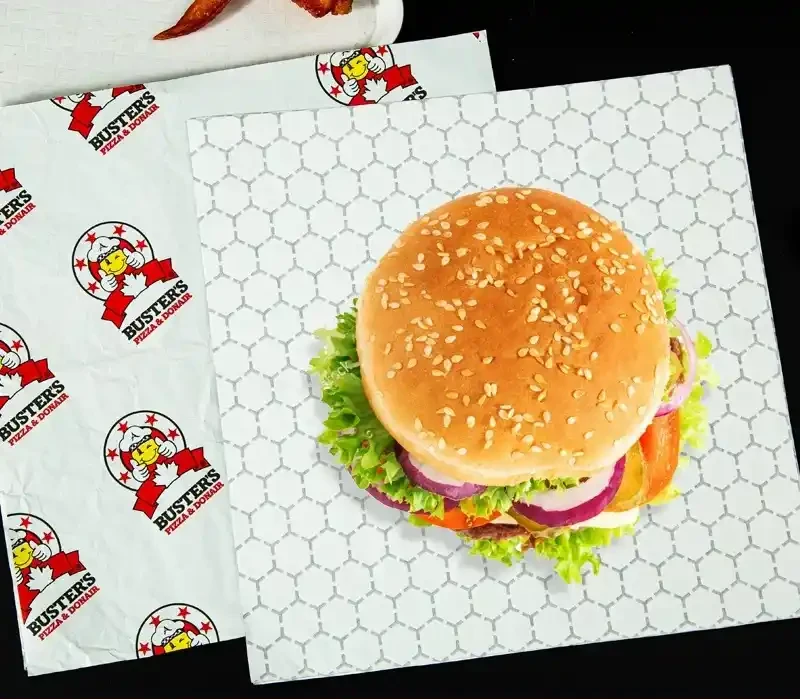

Interfolded burger wrap sheets for fast food chains
How It Supports Sustainable Deli Wrap Solutions
Many brands position wax/silicone oil paper as a paper-based wrap option. This machine helps scale production with controlled sheet size and consistent folding, enabling stable packaging presentation for “sustainable deli wrap solution” marketing
Configuration Checklist (For Accurate Quotation)
- Provide these to match the right column layout and output plan:
- Expected daily output & shift plan (for capacity sizing)
- Paper type: wax paper / silicone oil paper + GSM range (28–50 GSM)
- Roll width and core (76 mm)
- Finished sheet size: length (273 mm fixed/custom) + width range (6”–15” or custom)
- Target pack count per dispenser box
FAQ
What is an interfolded wax paper machine used for?
It converts roll wax/silicone oil paper into interfolded pop-up sheets for dispenser boxes—ideal for pre-cut deli paper production.
Can this pop-up wax paper folding machine produce one-at-a-time dispenser paper?
Yes, the V-fold cross fold format is designed for continuous extraction, supporting one-at-a-time dispensing performance.
What GSM wax paper can the machine run?
The specified applicable range is 28–50 GSM wax paper or silicone oil paper.
What sheet sizes are supported for pre-cut deli paper?
Standard length is 273 mm (fixed, customizable), with common widths 6”–15”.
How do I choose 3-column vs 4-column output?
It depends on target sheet width and capacity planning. Typical setups include 305 mm 3 columns or 228 mm 4 columns.
Can this be integrated into an automatic food packaging line?
Yes—commonly integrated with boxing/cartoning and downstream packing to reduce labor in deli paper packaging (final layout depends on your plant workflow).
Is this suitable for butcher paper?
This model is specified for 28–50 GSM wax/silicone oil paper. For butcher paper (often heavier), we recommend confirming GSM and stiffness first.
