Facial care brands and private-label converters are turning to pop-up-style oil blotting paper because it dispenses one sheet at a time, keeps the stack clean, and fits neatly into a compact retail box. Producing this format takes more than a simple slitter — it needs a dedicated interfold machine that can vacuum-fold thin, low-density base paper without tearing it. This page covers the full specifications, production process, and electrical configuration of ZXJ’s oil blotting paper folding machine (model YHZJ-PF-600×100), built for manufacturers converting 16–20 gsm oil-absorbing base paper into continuous pop-up stacks.
What Is a Pop-Up Oil Blotting Paper Folding Machine?
A pop-up oil blotting paper folding machine converts a jumbo roll of oil-absorbing base paper into an interfolded stack, where pulling out one sheet partially draws up the next — the same pull-and-pop mechanism used in facial tissue and napkin interfolders, adapted here for thin, lightweight oil-absorbing stock. The YHZJ-PF-600×100 forms the full 600mm roll width without slitting, cuts to length, and interfolds the sheets before stacking them for manual boxing or downstream packaging.
How an Interfold Oil Absorbing Paper Machine Works: Production Process
The YHZJ-PF-600×100 runs the following sequence in one continuous line:
| Step | Process |
|---|---|
| 1 | Unwind raw paper roll, synchronized by independent motor-controlled tension |
| 2 | Web guiding and flattening (auto correction, 2 sets) to prevent wrinkling or skew |
| 3 | Mechanical length cutting to 100mm, ±1mm precision |
| 4 | Vacuum-assisted interfold (pop-up / mutual-lock) folding |
| 5 | Tab/stick counting |
| 6 | Conveyor belt continuous output |
| 7 | Manual sorting and collection |

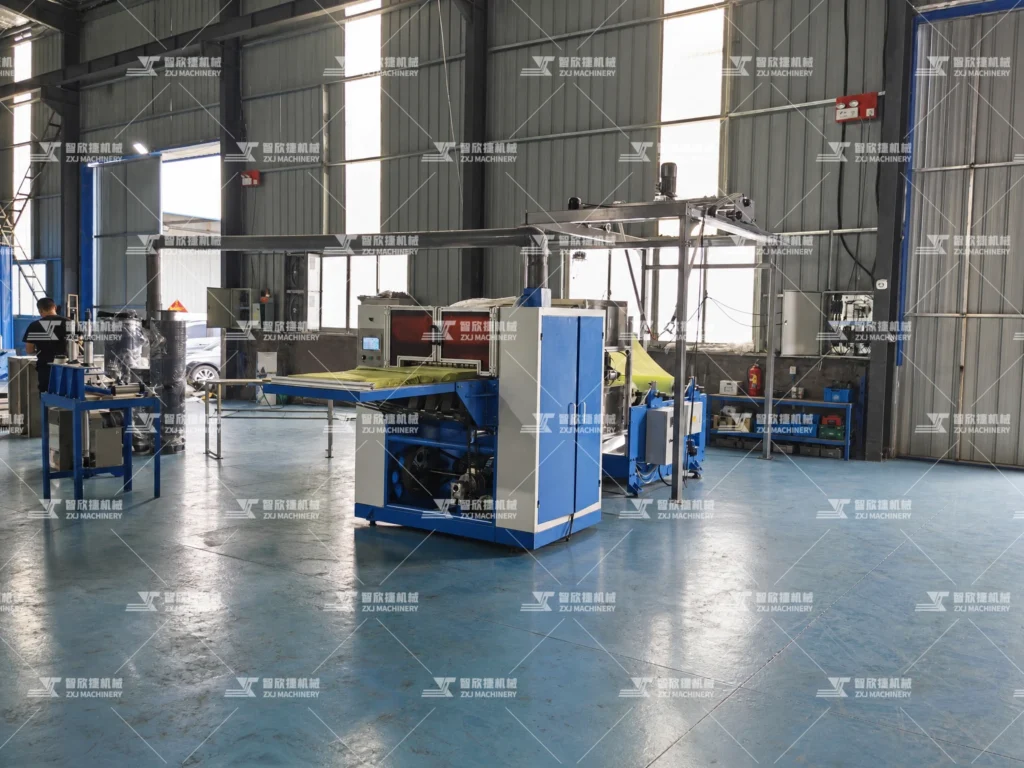

Pop-Up Oil Blotting Paper Machine Technical Specifications (YHZJ-PF-600×100)
| Item | Specification |
|---|---|
| Suggested model | YHZJ-PF-600×100 |
| Product form | Pop-up type, interfold, continuous stacked output |
| Folding method | Length-direction fold; full width unslit |
| Raw material width | 600mm |
| Cut length | 100mm |
| Folded size | 50mm |
| Finished width | 600mm (full-width forming) |
| Compatible raw material | 16–20 gsm oil-absorbing base paper |
| Paper core inner diameter | 76mm (3″) |
| Max roll diameter | ≤Φ800mm |
| Production speed | 200–250 sheets/min recommended; up to ~300 sheets/min depending on paper quality and static conditions |
